CBN-BR Series | Cush-A-Block Bridge Support with Channel

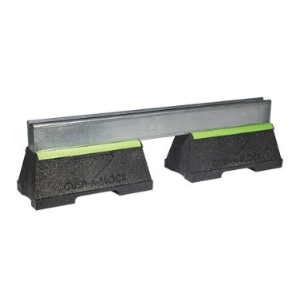

Cush-A-Block® CBN-BR Bridge Series
Like all of the Cush-A-Block® supports, the CBN-BR Bridge Rooftop Supports are perfect for supporting natural gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment, and many other applications.
The CBN-BR Series provides a longer mounting surface with strut lengths from 28" (0.7m) up to 60" (1.5m). Custom lengths are available upon request. Standard strut mount pipe clamps are used to secure the pipes.
Uniform load capacity for the Cush-A-Block® CBN-BR is based on the length of strut used to support the pipe
| Part No. | Strut Len. | Uniform Load |
| CBN28BR | 28" (711mm) | 1,491* (6.63 kN) |
| CBN36BR | 36" (914mm) | 1,160* (5.15 kN) |
| CBN42BR | 42" (1m) | 994* (4.42 kN) |
| CBN50BR | 50" (1.2m) | 835* (3.71 kN)) |
| CBN60BR | 60" (1.5m) | 696* (3.09 kN) |
| *This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity. | ||
Like all of the Cush-A-Block supports, the CBN-BR Bridge Rooftop Supports are perfect for supporting natural gas and refrigeration systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications.
The CBN-BR Series provides a longer mounting surface with strut lengths up to 60". Custom lengths are available upon request.
Standard strut mount pipe clamps are used to secure the pipes.
Uniform Load Capacity (Lbs)
- CBN28BR --- 1,491* (6.63 kN)
- CBN36BR --- 1,160* (5.15 kN)
- CBN42BR --- 994* (4.42 kN)
- CBN50BR --- 835* (3.71 kN)
- CBN60BR --- 696* (3.09 kN)
* This load is only for the capacity of the components in this assembly.
Please consult roofing manufacturer or engineer for roof load capacity.
