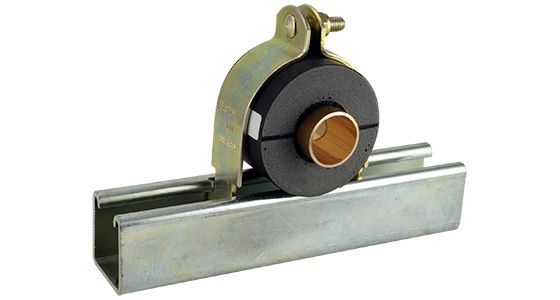

Cush-A-Therm™ 1" Wall Thickness
Cush-A-Therm™ Fire Test
We set a flame to the Cush-A-Therm insulation clamp from ZSi-Foster and a plastic insulation clamp from someone else. Check out this video to see the results! And unlike ordinary plastic insulation clamps that ruin ceilings with condensation leaks, the Cush-A-Therm fully protects the vapor barrier!
ASHRAE Insulation RecommendationsCush-A-Therm is designed to meet the ASHRAE recommendations for insulation for mechanical systems which indicate that insulated pipe hangers should provide the following:
- Complete sealing of pipe against water vapor ingress
- No energy transfer of cold to supporting clamp to prevent condensation of water and possible growth of mold. If the support incasing the insulation is in contact with the pipe or tube and supported by a metallic clamp, which is not protected by insulation, below ambient temperatures will be transfer to the clamp causing energy transfer and condensation.
- No interruption of the insulation envelope
- Limit or avoid compression at support location
ASHRAE Section 23.13-23.14 further states “when the goal is avoiding compression of low-compressive-strength insulation products, it is recommended to use high-strength insulation inserts made of a product that offers the desired compressive strength and other necessary performance properties. Other higher-strength materials that are not thermal insulation material and interrupt the insulation envelope, or do not allow complete sealing of an insulation system against water vapor ingress are not recommended for supporting insulated piping on pipe hangers. Note that wood blocks have poor thermal conductivity and are not recommended, especially for cold pipe systems.” Insulated cold piping should receive special attention when exposed to ambient or unconditioned air. The Cush-A-Therm is a product that seals out air, and insulates the pipe/tube from the supporting clamp, and is therefore in compliance with the 2013 ASHRAE insulation recommendations.
