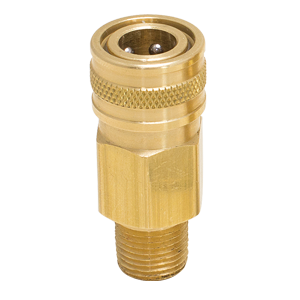

F180 SERIES SOCKETS

The F180 miniature ball-lock quick disconnect coupling/plug offers great performance in a very small size with high flow and minimal pressure drop. Designed for use with compressed air, gases, and liquids. It's perfect for breathable air, lab, medical, and pharmaceutical applications. It's a preferred choice anywhere high flow is required within a very tight space, such as boat lifts.


1/8" - F180 Series Sockets

(Interchange with Hansen 180 Series)

1/8" - F180 Series Sockets
Performance: Features:
Temperature Range: -40° to +225° F • Miniature Ball-Lock Quick Disconnect Coupling

• Designed for use with Compressed Air, Gasses, and Liquids

• Hansen 180 Series Interchange

• Standard Brass Body, Optional Plating Available

• F180 Series Utilizes a Tire Valve

• Can Be Used in Laboratory, Medical, Pharmaceutical, Food, and Beverage

• Offered with 1/8" Male NPT or 3/16" I.D. Hose Barb

• Standard Buna-N, Flexible Seal
Max. Operating Pressure: 700 psig (193 bar)
Min. Burst Pressure: 2,800 psig (193 bar)
Flow Rate: 2.5 scfm (71 Ipm)
