Cush-A-Block Mini Block, raised SPH Cush-A-Ring

See More About This Product In Our Catalog

Scroll inside Product Table to view all products.
View this page on desktop for best experience.

Page Total

$0.00

Part #:	More Info:	QTY:	Price:
CBMPH9	Request Availability	---	P.O.A.
CBMPH8	Request Availability	---	P.O.A.
CBMPH7	Request Availability	---	P.O.A.
CBMPH6	Request Availability	---	P.O.A.
CBMPH4	Request Availability	---	P.O.A.
CBMPH5	Request Availability	---	P.O.A.
CBMPH3	Request Availability	---	P.O.A.
CBMPH14	Request Availability	---	P.O.A.
CBMPH2	1	Details	- +	$37.90
CBMPH13	Request Availability	---	P.O.A.
CBMPH12	Request Availability	---	P.O.A.
CBMPH11	Request Availability	---	P.O.A.
CBMPH10	Request Availability	---	P.O.A.
CBMPH1	1	Details	- +	$38.00

Page Total

$0.00

Cush-A-Block Fixed Width Duct Support

Cush-A-Block® CBN-DSFW Fixed Width Duct Support

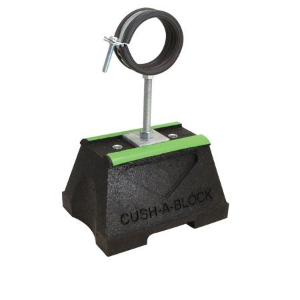

The Cush-A-Block® CBMPH Support with Raised SPH Cush-A-Ring Clamp is designed for Copper Tube or Steel Tube or Pipe

The Uniform load capacity of the CBMPH is 125 lbs (0.56 kN)
*This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.

Part No.	"D"	IP	CT1
CBMPH1	0.433" - 0.551" (11 - 14mm)	1⁄4"	3⁄8"
CBMPH2	0.591" - 0.709" (15 - 18mm)	3⁄8"	1⁄2"
CBMPH3	0.787" - 0.906" (20 - 23mm)	1⁄2"	3⁄4"
CBMPH4	0.984" - 1.102" (25 - 28mm)	3⁄4"	1"
CBMPH5	1.220" - 1.378" (31 - 35mm)	1"	1-1⁄4"
CBMPH6	1.575" - 1.693" (40 - 43mm)	1-1⁄4"	1-1⁄2"
CBMPH7	1.890" - 2.087" (48 - 53mm)	1-1⁄2"	-
CBMPH8	2.126" - 2.205" (54 - 56mm)	-	2"
CBMPH9	2.244" - 2.480" (57 - 63mm)	2"	-
CBMPH10	2.520" - 2.756" (64 - 70mm)	-	2-1⁄2"
Below parts have 2 bolt configuration SPH Clamps
CBMPH11	2.874" - 3.150" (73 - 80mm)	2-1⁄2"	3"
CBMPH12	3.268" - 3.583" (83 - 91mm)	3"	-
CBMPH13	3.937" - 4.134" (100 - 105 mm)	-	4"
CBMPH14	4.252" - 4.488" (108 - 114mm)	4"	-
