Cush-A-Block Mini Block, raised SPP Cush-A-Ring

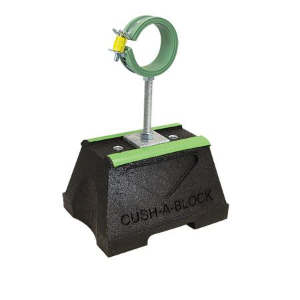

Cush-A-Block® Support with Raised SPP Cush-A-Ring Clamp
The Cush-A-Block® CBMPP Support with Raised SPHP Cush-A-Ring Clamp is designed for OVC, CPVC or PEX Pipe
The Uniform load capacity of the CBMPP is 125 lbs (0.56 kN)
*This load is only for the capacity of the components in this assembly.
Please consult roofing manufacturer or engineer for roof load capacity.
| Part No. | "D" | PVC/CPVC | PEX |
| CBMPP2 | 0.591" - 0.709" (15 - 18mm) | 3⁄8" | 1⁄2" |
| CBMPP3 | 0.787" - 0.906" (20 - 23mm) | 1⁄2" | 3⁄4" |
| CBMPP4 | 0.984" - 1.102" (25 - 28mm) | 3⁄4" | 1" |
| CBMPP5 | 1.220" - 1.378" (31 - 35mm) | 1" | 1-1⁄4" |
| CBMPP6 | 1.575" - 1.693" (40 - 43mm) | 1-1⁄4" | 1-1⁄2" |
| CBMPP7 | 1.890" - 2.087" (48 - 53mm) | 1-1⁄2" | - |
| CBMPP8 | 2.126" - 2.205" (54 - 56mm) | - | 2" |
| CBMPP9 | 2.362" - 2.559" (60 - 65mm) | 2" | - |
| CBMPP10 | 2.756" - 2.992" (70 - 76mm) | 2-1⁄2" | - |
| Below parts have 2 bolt configuration SPP Clamps | |||
| CBMPP11 | 3.386" - 3.583" (86 - 91mm) | 3" | - |
| CBMPP12 | 4.331" - 4.488" (110 - 114mm) | 4" | - |
