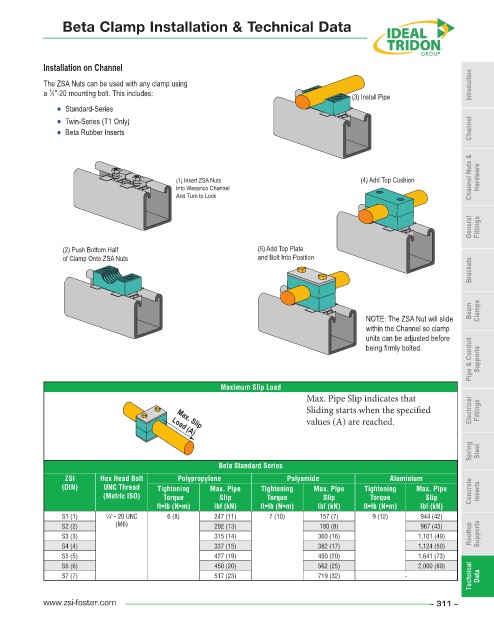

Beta Clamp Installation & Technical Data

Installation on Channel
The ZSA Nuts can be used with any clamp using Introduction
1
a ⁄4"-20 mounting bolt. This includes: (3) Install Pipe
• • Standard-Series
• • Twin-Series (T1 Only)
• • Beta Rubber Inserts Channel

Channel Nuts & Hardware

(1) Insert ZSA Nuts (4) Add Top Cushion
Into Wesanco Channel
And Turn to Lock

General Fittings

(2) Push Bottom Half (5) Add Top Plate
of Clamp Onto ZSA Nuts and Bolt Into Position
Brackets

Beam Clamps

NOTE: The ZSA Nut will slide
within the Channel so clamp
units can be adjusted before
Pipe & Conduit Supports
being firmly bolted.

Maximum Slip Load
Max. Pipe Slip indicates that
Sliding starts when the specified Electrical Fittings
values (A) are reached.
Max. Slip
Load (A)
Spring Steel

Beta Standard Series
ZSI Hex Head Bolt Polypropylene Polyamide Aluminium
(DIN) UNC Thread Tightening Max. Pipe Tightening Max. Pipe Tightening Max. Pipe
(Metric ISO) Torque Slip Torque Slip Torque Slip Concrete Inserts
ft•lb (N•m) lbf (kN) ft•lb (N•m) lbf (kN) ft•lb (N•m) lbf (kN)
S1 (1) 1 ⁄4" - 20 UNC 6 (8) 247 (11) 7 (10) 157 (7) 9 (12) 944 (42)
S2 (2) (M6) 292 (13) 180 (8) 967 (43)
S3 (3) 315 (14) 360 (16) 1,101 (49) Rooftop Supports
S4 (4) 337 (15) 382 (17) 1,124 (50)
S5 (5) 427 (19) 450 (20) 1,641 (73)
S6 (6) 450 (20) 562 (25) 2,000 (89)
S7 (7) 517 (23) 719 (32) - Technical Data
