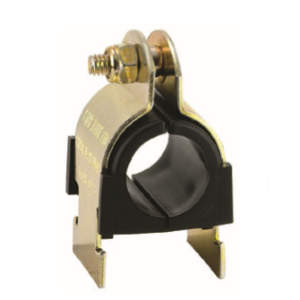

CUSH-A-CLAMP Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion. Cush-A-Clamp fits any standard 1-5/8 wide channel. Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. All parts are marked for easy identification and packaged for small lot or bulk use. When specified, Cush-A-Clamp assemblies up to 2, are available individually packaged.

THE CLAMP Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-38 have the Controlled Squeeze design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock. Clamps are available in steel (with electro-dichromate finish), and stainless steel type 304. (Contact factory for type 316).

THE CUSHION Made from a thermoplastic elastomer, its built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50F to 275F. Interlock edges and channel locator legs ensure that the cushion remains in place.
