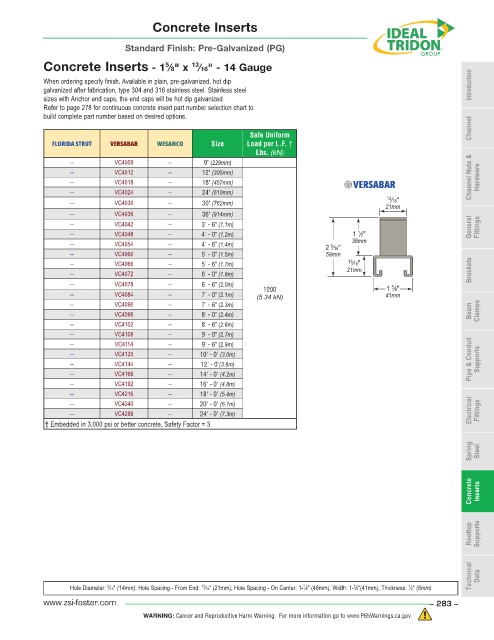

Page 283 - ZSi-Foster Product Catalog

Concrete Inserts

Standard Finish: Pre-Galvanized (PG)
Concrete Inserts - 1 ⁄8" x ⁄16" - 14 Gauge
5
13
When ordering specify finish. Available in plain, pre-galvanized, hot dip
galvanized after fabrication, type 304 and 316 stainless steel. Stainless steel Introduction
sizes with Anchor end caps, the end caps will be hot dip galvanized
Refer to page 278 for continuous concrete insert part number selection chart to
build complete part number based on desired options.

Safe Uniform Channel
FLORIDA STRUT VERSABAR WESANCO Size Load per L.F. †
Lbs. (kN)
-- VC4009 -- 9" (229mm)
-- VC4012 -- 12" (305mm) Channel Nuts & Hardware
-- VC4018 -- 18" (457mm)
-- VC4024 -- 24" (610mm)
13 ⁄16"
-- VC4030 -- 30" (762mm)
21mm
-- VC4036 -- 36" (914mm)
-- VC4042 -- 3' - 6" (1.1m) General Fittings
1
-- VC4048 -- 4' - 0" (1.2m) 1 ⁄2"
-- VC4054 -- 4' - 6" (1.4m) 2 ⁄16" 38mm
5
-- VC4060 -- 5' - 0" (1.5m) 59mm
13
⁄16"
-- VC4066 -- 5' - 6" (1.7m) 21mm
-- VC4072 -- 6' - 0" (1.8m) Brackets
-- VC4078 -- 6' - 6" (2.0m) 1200 1 ⁄8"
5
-- VC4084 -- 7' - 0" (2.1m) (5.34 kN) 41mm
-- VC4090 -- 7' - 6" (2.3m)
-- VC4096 -- 8' - 0" (2.4m) Beam Clamps
-- VC4102 -- 8' - 6" (2.6m)
-- VC4108 -- 9' - 0" (2.7m)
-- VC4114 -- 9' - 6" (2.9m)
-- VC4120 -- 10' - 0" (3.0m) Pipe & Conduit Supports
-- VC4144 -- 12' - 0"(3.6m)
-- VC4168 -- 14' - 0" (4.2m)
-- VC4192 -- 16' - 0" (4.8m)
-- VC4216 -- 18' - 0" (5.4m)
-- VC4240 -- 20' - 0" (6.1m)
-- VC4288 -- 24' - 0" (7.3m) Electrical Fittings
† Embedded in 3,000 psi or better concrete, Safety Factor = 3

Spring Steel

Concrete Inserts

Rooftop Supports

Technical Data

1
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
13
9
5
7
www.zsi-foster.com – 283 –
