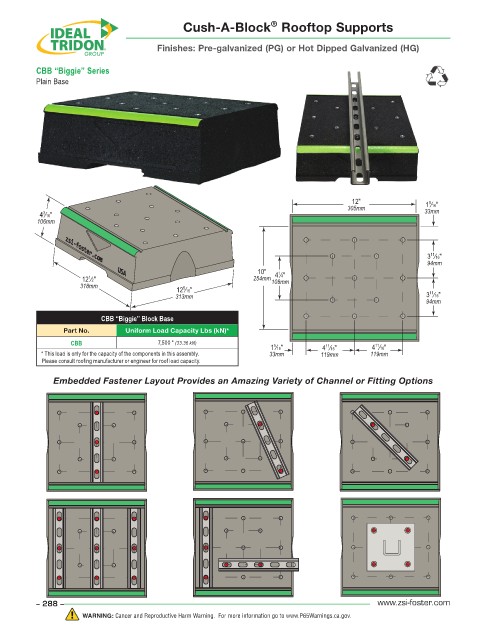

Cush-A-Block Rooftop Supports
®
Finishes: Pre-galvanized (PG) or Hot Dipped Galvanized (HG)
CBB “Biggie” Series
Plain Base
12" 1 ⁄16"
5
305mm
4 ⁄16" 33mm
3
106mm
11
3 ⁄16"
94mm
10" 4 ⁄4"
1
12 ⁄2" 254mm 108mm
1
318mm 12 ⁄16"
5
11
313mm 3 ⁄16"
94mm
CBB “Biggie” Block Base
Part No. Uniform Load Capacity Lbs (kN)*
CBB 7,500 * (33.36 kN) 1 ⁄16" 4 ⁄16" 4 ⁄16"
11
5
11
* This load is only for the capacity of the components in this assembly. 33mm 119mm 119mm
Please consult roofing manufacturer or engineer for roof load capacity.
Embedded Fastener Layout Provides an Amazing Variety of Channel or Fitting Options
