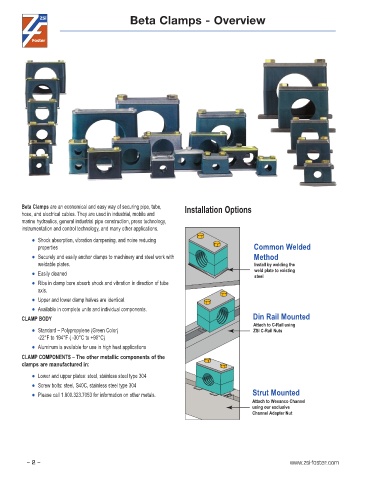

Beta Clamps - Overview
Beta Clamps are an economical and easy way of securing pipe, tube, Installation Options
hose, and electrical cables. They are used in industrial, mobile and
marine hydraulics, general industrial pipe construction, press technology,
instrumentation and control technology, and many other applications.
• Shock absorption, vibration dampening, and noise reducing
properties Common Welded
• Securely and easily anchor clamps to machinery and steel work with Method
weldable plates. Install by welding the
weld plate to existing
• Easily cleaned steel
• Ribs in clamp bore absorb shock and vibration in direction of tube
axis.
• Upper and lower clamp halves are identical.
• Available in complete units and individual components.
CLAMP BODY Din Rail Mounted
Attach to C-Rail using
• Standard – Polypropylene (Green Color) ZSI C-Rail Nuts
-22°F to 194°F ( -30°C to +90°C)
• Aluminum is available for use in high heat applications
CLAMP COMPONENTS – The other metallic components of the
clamps are manufactured in:
• Lower and upper plates: steel, stainless steel type 304
• Screw bolts: steel, S40C, stainless steel type 304
• Please call 1.800.323.7053 for information on other metals. Strut Mounted
Attach to Wesanco Channel
using our exclusive
Channel Adapter Nut
