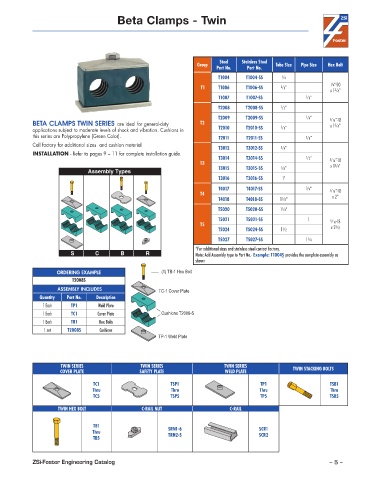

Page 5 - ZSi-Foster Beta Hydraulic Clamps

Beta Clamps - Twin

Steel Stainless Steel
Group Tube Size Pipe Size Hex Bolt
Part No. Part No.
T1004 T1004-SS 1 ⁄4
1 ⁄4"-20
T1 T1006 T1006-SS 3 ⁄ 8"
x 1 3 ⁄ 8"
T1007 T1007-SS 1 ⁄ 8"
T2008 T2008-SS 1 ⁄ 2"
T2009 T2009-SS 1 ⁄4" 5 ⁄ 16"-18
BETA CLAMPS TWIN SERIES are ideal for general-duty T2 x 1 ⁄ 8"
3
applications subject to moderate levels of shock and vibration. Cushions in T2010 T2010-SS 5 ⁄ 8"
this series are Polypropylene (Green Color). T2011 T2011-SS 3 ⁄ 8"
Call factory for additional sizes and cushion material
T3012 T3012-SS 3 ⁄4"
INSTALLATION - Refer to pages 9 – 11 for complete installation guide.
T3014 T3014-SS 1 ⁄ 2" 5 ⁄ 16"-18
T3 x 1 ⁄4"
3
Assembly Types T3015 T3015-SS 7 ⁄ 8"
T3016 T3016-SS 1"
T4017 T4017-SS 3 ⁄4" 5
T4 ⁄ 16"-18
T4018 T4018-SS 1 1 ⁄ 8" x 2"
T5020 T5020-SS 1 1 ⁄4"

T5021 T5021-SS 1 5 ⁄ 16-18
T5 3
T5024 T5024-SS 1 1 ⁄ 2 x 2 ⁄ 8
T5027 T5027-SS 1 1 ⁄4
*For additional sizes and stainless steel contact factory.
S C B R Note: Add Assembly type to Part No.- Example: T1004S provides the complete assembly as
shown

ORDERING EXAMPLE (1) TB-1 Hex Bolt
T2008S
ASSEMBLY INCLUDES TC-1 Cover Plate
Quantity Part No. Description
1 Each TP1 Weld Plate
1 Each TC1 Cover Plate Cushions T2008-S
1 Each TB1 Hex Bolts
1 set T2008S Cushions
TP-1 Weld Plate

TWIN SERIES TWIN SERIES TWIN SERIES TWIN STACKING BOLTS
COVER PLATE SAFETY PLATE WELD PLATE
TC1 TSP1 TP1 TSB1
Thru Thru Thru Thru
TC5 TSP5 TP5 TSB5

TWIN HEX BOLT C-RAIL NUT C-RAIL

TB1
Thru SRN1-6 SCR1
TRN2-5
SCR2
TB5

ZSi-Foster Engineering Catalog – 5 –
