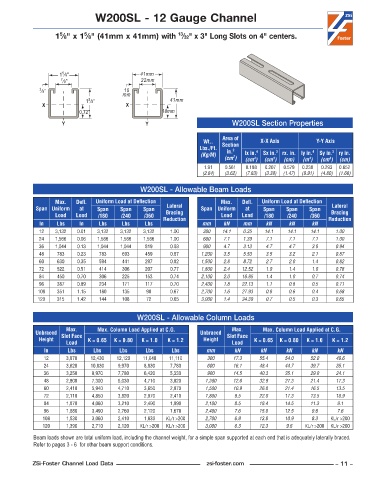

Page 11 - ZSi-Foster Channel Loads
P. 11

W200SL - 12 Gauge Channel


                                                           13
                     5
                             5
                   1 ⁄8" x 1 ⁄8" (41mm x 41mm) with  ⁄32" x 3" Long Slots on 4" centers.



                     5
                    1 ⁄8"                      41mm
                     7 ⁄8"                     22mm
              3 ⁄8"                      10
                                         mm
                              5
                             1 ⁄8"                      41mm
               X                          X
                           0.72"                      18mm
                     Y                           Y                           W200SL Section Properties


                                                                          Area of
                                                                   Wt..               X-X Axis          Y-Y Axis
                                                                  Lbs./Ft.   Section
                                                                           in.
                                                                             2
                                                                   (Kg/M)        lx in. 4   Sx in. 3  rx. in. ly in. 4  Sy in. 3  ry in.
                                                                          (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                             2
                                                                                                             3
                                                                                    4
                                                                                          3
                                                                                                      4
                                                                    1 .91  0 .561  0 .188  0 .207  0 .579  0 .238  0 .293  0 .652
                                                                   (2.84)  (3.62)  (7.83)  (3.39)  (1.47)  (9.91)  (4.80)  (1.66)
                                               W200SL - Allowable Beam Loads
                   Max.    Defl.   Uniform Load at Deflection            Max.    Defl.   Uniform Load at Deflection
             Span Uniform   at   Span   Span    Span   Lateral     Span Uniform   at   Span   Span    Span   Lateral
                   Load   Load   /180    /240   /360   Bracing           Load   Load   /180    /240   /360   Bracing
              In    Lbs    In    Lbs     Lbs    Lbs   Reduction    mm     kN    mm      kN     kN      kN   Reduction
              12   3,132  0 .01  3,132  3,132   3,132    1 .00     300    14.1  0.35   14.1    14.1   14.1     1.00
              24   1,566  0 .06  1,566  1,566   1,566    1 .00     600    7.1   1.39    7.1    7.1     7.1     1.00
              36   1,044  0 .13  1,044  1,044   819      0 .93     900    4.7   3.13    4.7    4.7     3.8     0.94
              48    783   0 .23  783     693    459      0 .87     1,200  3.5   5.53    3.5    3.2     2.1     0.87
              60    630   0 .35  594     441    297      0 .82     1,500  2.8   8.72    2.7    2.0     1.4     0.82
              72    522   0 .51  414     306    207      0 .77     1,800  2.4   12.52   1.9    1.4     1.0     0.78
              84    450   0 .70  306     225    153      0 .74     2,100  2.0   16.85   1.4    1.0     0.7     0.74
              96    387   0 .89  234     171    117      0 .70     2,400  1.8   22.13   1.1    0.8     0.5     0.71
             108    351   1 .15  180     135     90      0 .67     2,700  1.6   27.93   0.8    0.6     0.4     0.68
             120    315   1 .42  144     108     72      0 .65     3,000  1.4   34.39   0.7    0.5     0.3     0.65


                                              W200SL - Allowable Column Loads
                       Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
             Unbraced  Slot Face                                  Unbraced  Slot Face
              Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                       Load                                                  Load
               In      Lbs      Lbs     Lbs      Lbs     Lbs        mm        kN      kN      kN       kN      kN
               12      3,870   12,430  12,120   11,640  11,110       300     17.3     55.4    54.0    52.0     49.6
               24      3,620   10,830   9,970   8,830    7,780       600     16.1     48.4    44.7    39.7     35.1
               36      3,250   8,970    7,780   6,420    5,330       900     14.5     40.3    35.1    29.0     24.1
               48      2,800   7,300    6,030   4,710    3,820      1,200    12.6     32.9    27.3    21.4     17.3
               60      2,410   5,940    4,710   3,650    2,970      1,500    10.9     26.8    21.4    16.5     13.5
               72      2,110   4,850    3,820   2,970    2,410      1,800     9.5     22.0    17.3    13.5     10.9
               84      1,870   4,060    3,210   2,490    1,990      2,100     8.5     18.4    14.5    11.3     9.1
               96      1,680   3,490    2,760   2,120    1,670      2,400     7.6     15.8    12.5     9.6     7.6
               108     1,530   3,060    2,410   1,830  KL/r >200    2,700     6.9     13.8    10.9     8.3   KL/r >200
               120     1,390   2,710    2,120  KL/r >200  KL/r >200  3,000    6.3     12.3    9.6    KL/r >200  KL/r >200
            Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
            Refer to pages 3 - 6  for other beam support conditions.


            ZSi-Foster Channel Load Data                            zsi-foster.com                             – 11 –
