Page 20 - ZSi-Foster Channel Loads
P. 20

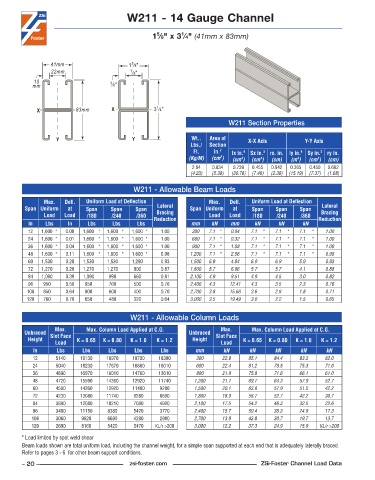

W211 - 14 Gauge Channel


                                                    5
                                                            1
                                                   1 ⁄8" x 3 ⁄4" (41mm x 83mm)


                  41mm                     1 ⁄8"
                                            5
                  22mm                      7 ⁄8"
            10                       3
            mm                        ⁄8"



                                                    1
             X            83mm       X             3 ⁄4"
                                                                            W211 Section Properties


                   Y                        Y                   Wt..   Area of    X-X Axis           Y-Y Axis
                                                               Lbs./  Section
                                                                Ft.    in. 2   lx in. 4   Sx in. 3  rx. in.  ly in. 4  Sy in. 3  ry in.
                                                                         2
                                                               (Kg/M)  (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                                4
                                                                                                         3
                                                                                                  4
                                                                                      3
                                                                2 .84  0 .834  0 .739  0 .455  0 .942  0 .365  0 .450  0 .662
                                                               (4.23)  (5.38)  (30.76)  (7.46)  (2.39)  (15.19)  (7.37)  (1.68)
                                             W211 - Allowable Beam Loads
               Max.    Defl.   Uniform Load at Deflection            Max.    Defl.   Uniform Load at Deflection
         Span Uniform   at   Span    Span    Span   Lateral    Span Uniform   at   Span    Span    Span   Lateral
               Load   Load   /180    /240    /360   Bracing          Load   Load   /180    /240    /360   Bracing
          In    Lbs    In     Lbs     Lbs     Lbs  Reduction   mm     kN    mm      kN      kN      kN   Reduction
          12   1,600 *  0 .00  1,600 *  1,600 *  1,600 *  1 .00  300  7.1 *  0.04  7.1  *  7.1  *  7.1  *  1.00
          24   1,600 *  0 .01  1,600 *  1,600 *  1,600 *  1 .00  600  7.1 *  0.32  7.1  *  7.1  *  7.1  *  1.00
          36   1,600 *  0 .04  1,600 *  1,600 *  1,600 *  1 .00  900  7.1 *  1.08  7.1  *  7.1  *  7.1  *  1.00
          48   1,600 *  0 .11  1,600 *  1,600 *  1,600 *  0 .98  1,200  7.1 *  2.56  7.1  *  7.1  *  7.1  *  0.98
          60   1,530    0 .20  1,530    1,530    1,290    0 .93  1,500  6.9    4.84  6.9     6.9     5.9     0.93
          72   1,270    0 .28  1,270    1,270    900    0 .87  1,800  5.7    6.96  5.7     5.7     4.1     0.88
          84   1,090    0 .39  1,090    990     660    0 .81   2,100  4.9    9.51  4.9     4.5     3.0     0.82
          96   950    0 .50  950     760     500      0 .76    2,400  4.3    12.41  4.3     3.5     2.3     0.76
          108  850    0 .64  800     600     400      0 .70    2,700  3.8    15.66  3.6     2.8     1.8     0.71
          120  760    0 .78  650     480     320      0 .64    3,000  3.5    19.49  3.0     2.2     1.5     0.65


                                            W211 - Allowable Column Loads
                   Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
         Unbraced  Slot Face                                   Unbraced  Slot Face
          Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                   Load                                                  Load
            In      Lbs     Lbs     Lbs      Lbs     Lbs         mm       kN       kN      kN      kN       kN
            12     5140    19130    18970   18700    18390       300      22.9    85.1    84.4     83.3    82.0
            24     5040    18230    17670   16860    16010       600      22.4    81.2    78.8     75.3    71.6
            36     4890    16970    16010   14760    13610       900      21.8    75.8    71.6     66.1    61.0
            48     4720    15590    14360   12920    11740      1,200     21.1    69.7    64.3     57.9    52.7
            60     4500    14260    12920   11480    9280       1,500     20.1    63.9    57.9     51.5    42.2
            72     4230    13080    11740    9280    6690       1,800     18.9    58.7    52.7     42.2    30.7
            84     3890    12080    10210    7080    4920       2,100     17.5    54.2    46.3     32.5    22.6
            96     3490    11150    8380     5420    3770       2,400     15.7    50.4    38.3     24.9    17.3
           108     3060     9620    6690     4280    2980       2,700     13.9    43.8    30.7     19.7    13.7
           120     2690     8160    5420     3470   KL/r >200   3,000     12.2    37.3    24.9     15.9  KL/r >200
        * Load limited by spot weld shear
        Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
        Refer to pages 3 - 6  for other beam support conditions.
