MOLD/DIE STYLE PNEUMATIC QUICK DISCONNECTS

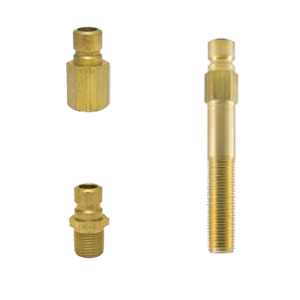

ZSi-Foster FJT Series couplers are designed to connect coolant lines to plastic molds and die casting dies. FJT Series plugs are mounted in the mold. They can be threaded directly into the mold coolant ports or recessed into the mold for a flush surface during storage. Sockets have hose stems, either standard hose or “Push-on” type, for direct connection to the coolant line going to the manifold. Seal compound is silicone for use with water, ethylene glycol, or air.

Features:

• Precision leakproof seal is silicone
• Two piece construction on straight stem sockets
• Double knurl on socket sleeve for easier grip
• Sockets have six balls

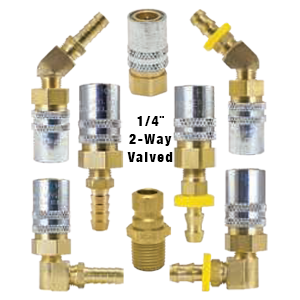

Type: Straight-Thru, 1-Way or 2-Way

Interchangeability: DME Jiffy-Tite and Jiffy-Matic and Parker Moldmate couplers

Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect

Options: Ball Lock (BL) - Locks manual socket against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve.

Specifications:

Temperature Range: -90° to 440° F

Rated Pressure: 200 PSIG

Performance Data		Flow
		Water - GPM 10 PSIG Pressure Drop

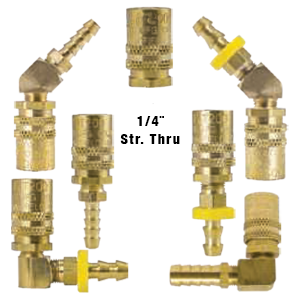

FJT 1/4"	Straight-Thru	4.5

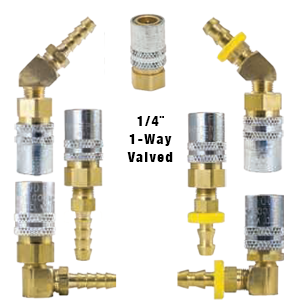

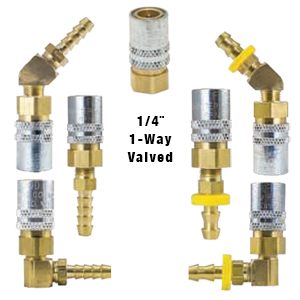

FJT 1/4" V	One Way (valved)	2.3

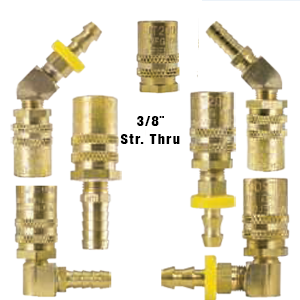

FJT 3/8"	Straight-Thru	10

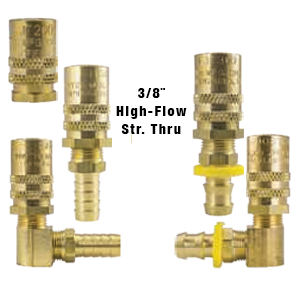

FJT 3/8" HF	High Flow	13.8
FJT 3/8" V	One Way (valved)	5.9

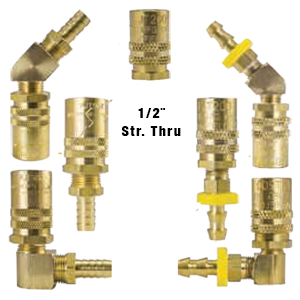

FJT 1/2"	Straight-Thru	28.2
