TRU-FLATE INTERCHANGE PNEUMATIC QUICK DISCONNECTS

TF Series Couplers (pneumatic) up to 300 psig connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a wide range of sizes and materials for use in a variety of applications with air or fluid.

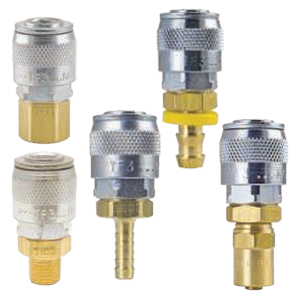

**1/4" Auto. Sockets-Tru-Flate Int.-TF3 Series**

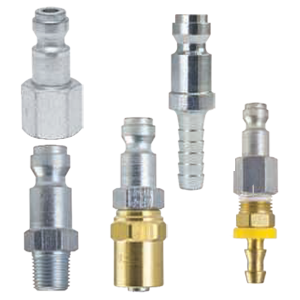

**1/4" Plugs-Tru-Flate Int.-TF3 Series**

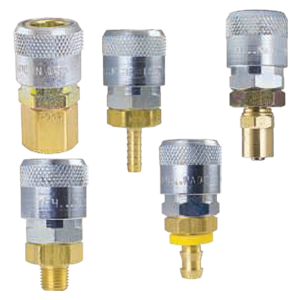

**3/8" Auto. Sockets-Tru-Flate Int.-TF4 Series**

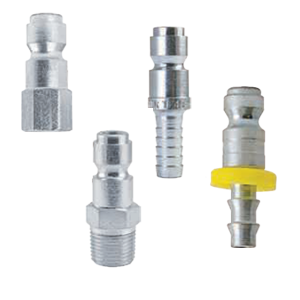

**3/8" Plugs-Tru-Flate Int.-TF4 Series**

SHD and TL Series
Specifications:		Features:	Applications:
Type:	1-Way Shut-Off	• Developed for the automotive industry • High flow valves with minimal pressure drop • Integral Sleeve guard helps prevent accidental disconnect • Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn	• Air compressors, Pneumatic Tools • Grease guns, Paint applicators
Rated Pressure:	300 PSIG
Operation: Automatic Push to Connect; Twist-to-release
Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
