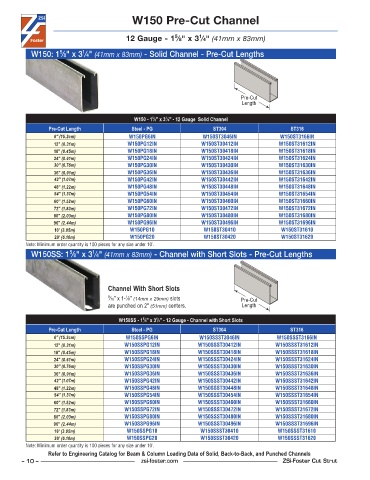

Page 10 - ZSi-Foster Cut Strut
P. 10
W150 Pre-Cut Channel
1
5
12 Gauge - 1 ⁄8" x 3 ⁄4" (41mm x 83mm)
1
5
W150: 1 ⁄8" x 3 ⁄4" (41mm x 83mm) - Solid Channel - Pre-Cut Lengths
Pre-Cut
Length
1
5
W150 - 1 ⁄8" x 3 ⁄4" - 12 Gauge Solid Channel
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W150PG6IN W150ST3046IN W150ST3166IN
12" (0.31m) W150PG12IN W150ST30412IN W150ST31612IN
18" (0.45m) W150PG18IN W150ST30418IN W150ST31618IN
24" (0.61m) W150PG24IN W150ST30424IN W150ST31624IN
30" (0.76m) W150PG30IN W150ST30430IN W150ST31630IN
36" (0.91m) W150PG36IN W150ST30436IN W150ST31636IN
42" (1.07m) W150PG42IN W150ST30442IN W150ST31642IN
48" (1.22m) W150PG48IN W150ST30448IN W150ST31648IN
54" (1.37m) W150PG54IN W150ST30454IN W150ST31654IN
60" (1.52m) W150PG60IN W150ST30460IN W150ST31660IN
72" (1.83m) W150PG72IN W150ST30472IN W150ST31672IN
80" (2.03m) W150PG80IN W150ST30480IN W150ST31680IN
96" (2.44m) W150PG96IN W150ST30496IN W150ST31696IN
10' (3.05m) W150PG10 W150ST30410 W150ST31610
20' (6.10m) W150PG20 W150ST30420 W150ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
W150SS: 1 ⁄8" x 3 ⁄4" (41mm x 83mm) - Channel with Short Slots - Pre-Cut Lengths
1
5
Channel With Short Slots
1
9 ⁄16" x 1- ⁄8" (14mm x 29mm) slots Pre-Cut
are punched on 2" (51mm) centers. Length
1
5
W150SS - 1 ⁄8" x 3 ⁄4" - 12 Gauge - Channel with Short Slots
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W150SSPG6IN W150SSST3046IN W150SSST3166IN
12" (0.31m) W150SSPG12IN W150SSST30412IN W150SSST31612IN
18" (0.45m) W150SSPG18IN W150SSST30418IN W150SSST31618IN
24" (0.61m) W150SSPG24IN W150SSST30424IN W150SSST31624IN
30" (0.76m) W150SSPG30IN W150SSST30430IN W150SSST31630IN
36" (0.91m) W150SSPG36IN W150SSST30436IN W150SSST31636IN
42" (1.07m) W150SSPG42IN W150SSST30442IN W150SSST31642IN
48" (1.22m) W150SSPG48IN W150SSST30448IN W150SSST31648IN
54" (1.37m) W150SSPG54IN W150SSST30454IN W150SSST31654IN
60" (1.52m) W150SSPG60IN W150SSST30460IN W150SSST31660IN
72" (1.83m) W150SSPG72IN W150SSST30472IN W150SSST31672IN
80" (2.03m) W150SSPG80IN W150SSST30480IN W150SSST31680IN
96" (2.44m) W150SSPG96IN W150SSST30496IN W150SSST31696IN
10' (3.05m) W150SSPG10 W150SSST30410 W150SSST31610
20' (6.10m) W150SSPG20 W150SSST30420 W150SSST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
Refer to Engineering Catalog for Beam & Column Loading Data of Solid, Back-to-Back, and Punched Channels
– 10 – zsi-foster.com ZSi-Foster Cut Strut
