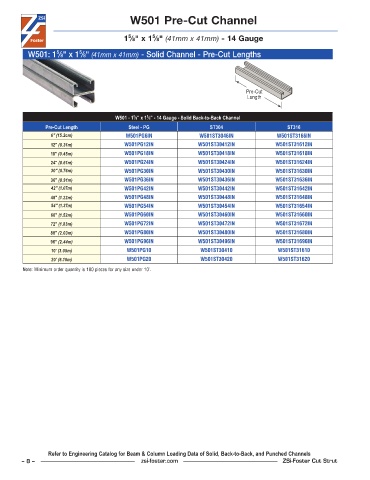

Page 8 - ZSi-Foster Cut Strut
P. 8
W501 Pre-Cut Channel
5
5
1 ⁄8" x 1 ⁄8" (41mm x 41mm) - 14 Gauge
5
5
W501: 1 ⁄8" x 1 ⁄8" (41mm x 41mm) - Solid Channel - Pre-Cut Lengths
Pre-Cut
Length
W501 - 1 ⁄8" x 1 ⁄8" - 14 Gauge - Solid Back-to-Back Channel
5
5
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W501PG6IN W501ST3046IN W501ST3166IN
12" (0.31m) W501PG12IN W501ST30412IN W501ST31612IN
18" (0.45m) W501PG18IN W501ST30418IN W501ST31618IN
24" (0.61m) W501PG24IN W501ST30424IN W501ST31624IN
30" (0.76m) W501PG30IN W501ST30430IN W501ST31630IN
36" (0.91m) W501PG36IN W501ST30436IN W501ST31636IN
42" (1.07m) W501PG42IN W501ST30442IN W501ST31642IN
48" (1.22m) W501PG48IN W501ST30448IN W501ST31648IN
54" (1.37m) W501PG54IN W501ST30454IN W501ST31654IN
60" (1.52m) W501PG60IN W501ST30460IN W501ST31660IN
72" (1.83m) W501PG72IN W501ST30472IN W501ST31672IN
80" (2.03m) W501PG80IN W501ST30480IN W501ST31680IN
96" (2.44m) W501PG96IN W501ST30496IN W501ST31696IN
10' (3.05m) W501PG10 W501ST30410 W501ST31610
20' (6.10m) W501PG20 W501ST30420 W501ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
Refer to Engineering Catalog for Beam & Column Loading Data of Solid, Back-to-Back, and Punched Channels
– 8 – zsi-foster.com ZSi-Foster Cut Strut
