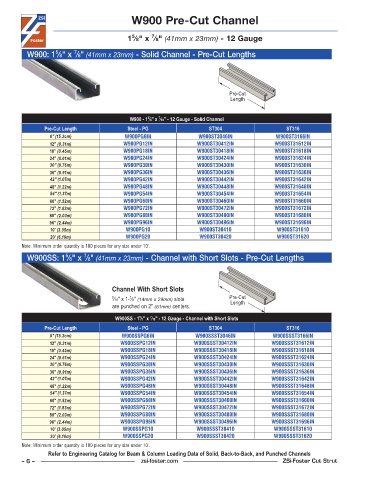

Page 6 - ZSi-Foster Cut Strut
P. 6
W900 Pre-Cut Channel
1 ⁄8" x ⁄8" (41mm x 23mm) - 12 Gauge
7
5
7
W900: 1 ⁄8" x ⁄8" (41mm x 23mm) - Solid Channel - Pre-Cut Lengths
5
Pre-Cut
Length
5
W900 - 1 ⁄8" x ⁄18" - 12 Gauge - Solid Channel
7
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W900PG6IN W900ST3046IN W900ST3166IN
12" (0.31m) W900PG12IN W900ST30412IN W900ST31612IN
18" (0.45m) W900PG18IN W900ST30418IN W900ST31618IN
24" (0.61m) W900PG24IN W900ST30424IN W900ST31624IN
30" (0.76m) W900PG30IN W900ST30430IN W900ST31630IN
36" (0.91m) W900PG36IN W900ST30436IN W900ST31636IN
42" (1.07m) W900PG42IN W900ST30442IN W900ST31642IN
48" (1.22m) W900PG48IN W900ST30448IN W900ST31648IN
54" (1.37m) W900PG54IN W900ST30454IN W900ST31654IN
60" (1.52m) W900PG60IN W900ST30460IN W900ST31660IN
72" (1.83m) W900PG72IN W900ST30472IN W900ST31672IN
80" (2.03m) W900PG80IN W900ST30480IN W900ST31680IN
96" (2.44m) W900PG96IN W900ST30496IN W900ST31696IN
10' (3.05m) W900PG10 W900ST30410 W900ST31610
20' (6.10m) W900PG20 W900ST30420 W900ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
W900SS: 1 ⁄8" x ⁄8" (41mm x 23mm) - Channel with Short Slots - Pre-Cut Lengths
7
5
Channel With Short Slots
9 ⁄16" x 1- ⁄8" (14mm x 29mm) slots Pre-Cut
1
are punched on 2" (51mm) centers. Length
7
5
W900SS - 1 ⁄8" x ⁄18" - 12 Gauge - Channel with Short Slots
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W900SSPG6IN W900SSST3046IN W900SSST3166IN
12" (0.31m) W900SSPG12IN W900SSST30412IN W900SSST31612IN
18" (0.45m) W900SSPG18IN W900SSST30418IN W900SSST31618IN
24" (0.61m) W900SSPG24IN W900SSST30424IN W900SSST31624IN
30" (0.76m) W900SSPG30IN W900SSST30430IN W900SSST31630IN
36" (0.91m) W900SSPG36IN W900SSST30436IN W900SSST31636IN
42" (1.07m) W900SSPG42IN W900SSST30442IN W900SSST31642IN
48" (1.22m) W900SSPG48IN W900SSST30448IN W900SSST31648IN
54" (1.37m) W900SSPG54IN W900SSST30454IN W900SSST31654IN
60" (1.52m) W900SSPG60IN W900SSST30460IN W900SSST31660IN
72" (1.83m) W900SSPG72IN W900SSST30472IN W900SSST31672IN
80" (2.03m) W900SSPG80IN W900SSST30480IN W900SSST31680IN
96" (2.44m) W900SSPG96IN W900SSST30496IN W900SSST31696IN
10' (3.05m) W900SSPG10 W900SSST30410 W900SSST31610
20' (6.10m) W900SSPG20 W900SSST30420 W900SSST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
Refer to Engineering Catalog for Beam & Column Loading Data of Solid, Back-to-Back, and Punched Channels
– 6 – zsi-foster.com ZSi-Foster Cut Strut
