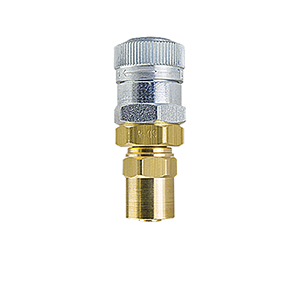

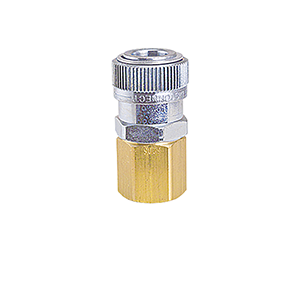

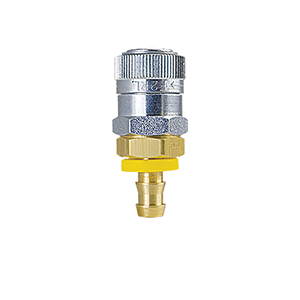

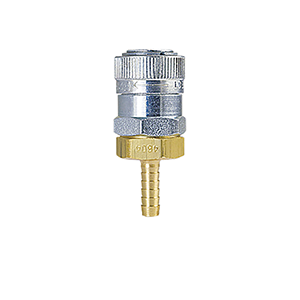

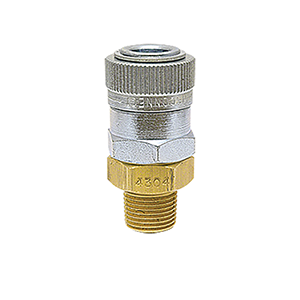

1/2" RING LOCK AUTOMATIC SOCKETS - 3FRL SERIES
Ring Lock Style
(Interchange with Hansen 1/2" 3RL)
ZSi-Foster 3FRL Series 1/2" Ring Lock Automatic Socket couplers offer secure and durable connections.
| 3 FRL Series | ||
|---|---|---|
| Specifications: | Standards Materials: | |
| Type: | One-Way Shut-Off | Socket - Zinc Plated Steel Body - Brass Socket End - Zinc Plated Steel Sleeve - Zinc Plated Steel Valve - Buna-N (Nitrile) Seal - Spring is Zinc Plated Music Wire - Zinc Plated Steel Locking Ring Plug - Zinc Plated Case-Hardened Steel |
| Rated Pressure: | 300PSIG | |
| Operation: | Automatic Push to Connect; Twist-to-release | |
| Features: | - High flow capacity (Ring Lock) - Push to Connect, retract socket socket sleeve to disconnect - Will not disconnect when hose is dragged on the ground - Rotate locking sleeve approximately 20° to disconnect - Optional seal materials available |
|
