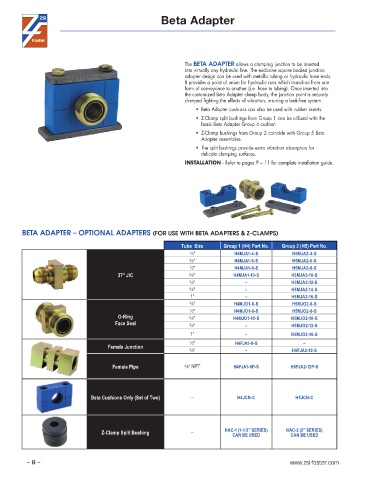

Beta Adapter

The BETA ADAPTER allows a clamping junction to be inserted
into virtually any hydraulic line. The exclusive square bodied junction
adapter design can be used with metallic tubing or hydraulic hose ends.
It provides a point of union for hydraulic runs which transition from one
form of conveyance to another (i.e. hose to tubing). Once inserted into
the customized Beta Adapter clamp body, the junction point is securely
clamped fighting the effects of vibration, insuring a leak-free system.
• Beta Adapter cushions can also be used with rubber inserts.
• Z-Clamp split bushings from Group 1 can be utilized with the
basic Beta Adapter Group 4 cushion.
• Z-Clamp bushings from Group 2 coincide with Group 5 Beta
Adapter assemblies.
• The split bushings provide extra vibration absorption for
delicate clamping surfaces.
INSTALLATION - Refer to pages 9 – 11 for complete installation guide.

BETA ADAPTER – OPTIONAL ADAPTERS (FOR USE WITH BETA ADAPTERS & Z-CLAMPS)

Tube Size Group 1 (H4) Part No. Group 2 (H5) Part No.
1 ⁄4" H4MJA1-4-S H5MJA2-4-S
3 ⁄8" H4MJA1-6-S H5MJA2-6-S
1 ⁄2" H4MJA1-8-S H5MJA2-8-S
37° JIC 5 ⁄8" H4MJA1-10-S H5MJA2-10-S
3 ⁄4" – H5MJA2-12-S
5 ⁄8" – H5MJA2-14-S
1" – H5MJA2-16-S
3 ⁄8" H4MJO1-6-S H5MJO2-6-S
1 ⁄2" H4MJO1-8-S H5MJO2-8-S
O-Ring 5 ⁄8" H4MJO1-10-S H5MJO2-10-S
Face Seal 3 ⁄4" – H5MJO2-12-S
1" – H5MJO2-16-S
1 ⁄2" H4FJA1-8-S –
Female Junction
3 ⁄4" – H5FJA2-12-S

Female Pipe 3 ⁄8" NPT H4FJA1-6P-S H5FJA2-12P-S

Beta Cushions Only (Set of Two) – H4JCN-C H5JCN-C

Z-Clamp Split Bushing – HAC-1 (1-1⁄2" SERIES) HAC-2 (2" SERIES)
CAN BE USED
CAN BE USED
