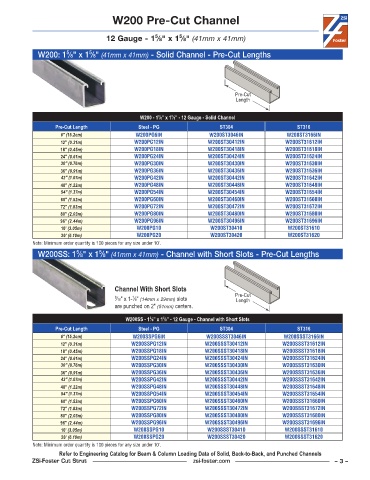

Page 3 - ZSi-Foster Cut Strut
P. 3
W200 Pre-Cut Channel
5
5
12 Gauge - 1 ⁄8" x 1 ⁄8" (41mm x 41mm)
5
5
W200: 1 ⁄8" x 1 ⁄8" (41mm x 41mm) - Solid Channel - Pre-Cut Lengths
Pre-Cut
Length
5
5
W200 - 1 ⁄8" x 1 ⁄8" - 12 Gauge - Solid Channel
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W200PG6IN W200ST3046IN W200ST3166IN
12" (0.31m) W200PG12IN W200ST30412IN W200ST31612IN
18" (0.45m) W200PG18IN W200ST30418IN W200ST31618IN
24" (0.61m) W200PG24IN W200ST30424IN W200ST31624IN
30" (0.76m) W200PG30IN W200ST30430IN W200ST31630IN
36" (0.91m) W200PG36IN W200ST30436IN W200ST31636IN
42" (1.07m) W200PG42IN W200ST30442IN W200ST31642IN
48" (1.22m) W200PG48IN W200ST30448IN W200ST31648IN
54" (1.37m) W200PG54IN W200ST30454IN W200ST31654IN
60" (1.52m) W200PG60IN W200ST30460IN W200ST31660IN
72" (1.83m) W200PG72IN W200ST30472IN W200ST31672IN
80" (2.03m) W200PG80IN W200ST30480IN W200ST31680IN
96" (2.44m) W200PG96IN W200ST30496IN W200ST31696IN
10' (3.05m) W200PG10 W200ST30410 W200ST31610
20' (6.10m) W200PG20 W200ST30420 W200ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
5
5
W200SS: 1 ⁄8" x 1 ⁄8" (41mm x 41mm) - Channel with Short Slots - Pre-Cut Lengths
Channel With Short Slots
Pre-Cut
9 ⁄16" x 1- ⁄8" (14mm x 29mm) slots Length
1
are punched on 2" (51mm) centers.
5
5
W200SS - 1 ⁄8" x 1 ⁄8" - 12 Gauge - Channel with Short Slots
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W200SSPG6IN W200SSST3046IN W200SSST3166IN
12" (0.31m) W200SSPG12IN W200SSST30412IN W200SSST31612IN
18" (0.45m) W200SSPG18IN W200SSST30418IN W200SSST31618IN
24" (0.61m) W200SSPG24IN W200SSST30424IN W200SSST31624IN
30" (0.76m) W200SSPG30IN W200SSST30430IN W200SSST31630IN
36" (0.91m) W200SSPG36IN W200SSST30436IN W200SSST31636IN
42" (1.07m) W200SSPG42IN W200SSST30442IN W200SSST31642IN
48" (1.22m) W200SSPG48IN W200SSST30448IN W200SSST31648IN
54" (1.37m) W200SSPG54IN W200SSST30454IN W200SSST31654IN
60" (1.52m) W200SSPG60IN W200SSST30460IN W200SSST31660IN
72" (1.83m) W200SSPG72IN W200SSST30472IN W200SSST31672IN
80" (2.03m) W200SSPG80IN W200SSST30480IN W200SSST31680IN
96" (2.44m) W200SSPG96IN W200SSST30496IN W200SSST31696IN
10' (3.05m) W200SSPG10 W200SSST30410 W200SSST31610
20' (6.10m) W200SSPG20 W200SSST30420 W200SSST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
Refer to Engineering Catalog for Beam & Column Loading Data of Solid, Back-to-Back, and Punched Channels
ZSi-Foster Cut Strut zsi-foster.com – 3 –
