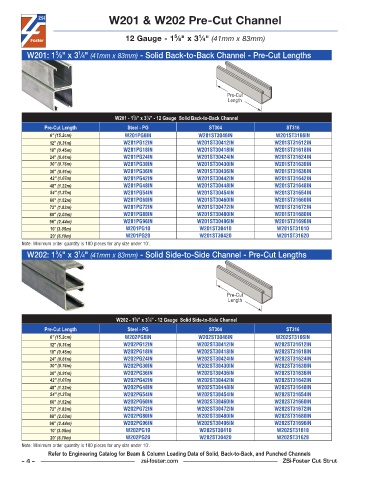

Page 4 - ZSi-Foster Cut Strut
P. 4
W201 & W202 Pre-Cut Channel
1
5
12 Gauge - 1 ⁄8" x 3 ⁄4" (41mm x 83mm)
1
5
W201: 1 ⁄8" x 3 ⁄4" (41mm x 83mm) - Solid Back-to-Back Channel - Pre-Cut Lengths
Pre-Cut
Length
5
1
W201 - 1 ⁄8" x 3 ⁄4" - 12 Gauge Solid Back-to-Back Channel
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W201PG6IN W201ST3046IN W201ST3166IN
12" (0.31m) W201PG12IN W201ST30412IN W201ST31612IN
18" (0.45m) W201PG18IN W201ST30418IN W201ST31618IN
24" (0.61m) W201PG24IN W201ST30424IN W201ST31624IN
30" (0.76m) W201PG30IN W201ST30430IN W201ST31630IN
36" (0.91m) W201PG36IN W201ST30436IN W201ST31636IN
42" (1.07m) W201PG42IN W201ST30442IN W201ST31642IN
48" (1.22m) W201PG48IN W201ST30448IN W201ST31648IN
54" (1.37m) W201PG54IN W201ST30454IN W201ST31654IN
60" (1.52m) W201PG60IN W201ST30460IN W201ST31660IN
72" (1.83m) W201PG72IN W201ST30472IN W201ST31672IN
80" (2.03m) W201PG80IN W201ST30480IN W201ST31680IN
96" (2.44m) W201PG96IN W201ST30496IN W201ST31696IN
10' (3.05m) W201PG10 W201ST30410 W201ST31610
20' (6.10m) W201PG20 W201ST30420 W201ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
5
1
W202: 1 ⁄8" x 3 ⁄4" (41mm x 83mm) - Solid Side-to-Side Channel - Pre-Cut Lengths
Pre-Cut
Length
5
1
W202 - 1 ⁄8" x 3 ⁄4" - 12 Gauge Solid Side-to-Side Channel
Pre-Cut Length Steel - PG ST304 ST316
6" (15.2cm) W202PG6IN W202ST3046IN W202ST3166IN
12" (0.31m) W202PG12IN W202ST30412IN W202ST31612IN
18" (0.45m) W202PG18IN W202ST30418IN W202ST31618IN
24" (0.61m) W202PG24IN W202ST30424IN W202ST31624IN
30" (0.76m) W202PG30IN W202ST30430IN W202ST31630IN
36" (0.91m) W202PG36IN W202ST30436IN W202ST31636IN
42" (1.07m) W202PG42IN W202ST30442IN W202ST31642IN
48" (1.22m) W202PG48IN W202ST30448IN W202ST31648IN
54" (1.37m) W202PG54IN W202ST30454IN W202ST31654IN
60" (1.52m) W202PG60IN W202ST30460IN W202ST31660IN
72" (1.83m) W202PG72IN W202ST30472IN W202ST31672IN
80" (2.03m) W202PG80IN W202ST30480IN W202ST31680IN
96" (2.44m) W202PG96IN W202ST30496IN W202ST31696IN
10' (3.05m) W202PG10 W202ST30410 W202ST31610
20' (6.10m) W202PG20 W202ST30420 W202ST31620
Note: Minimum order quantity is 100 pieces for any size under 10'.
Refer to Engineering Catalog for Beam & Column Loading Data of Solid, Back-to-Back, and Punched Channels
– 4 – zsi-foster.com ZSi-Foster Cut Strut
